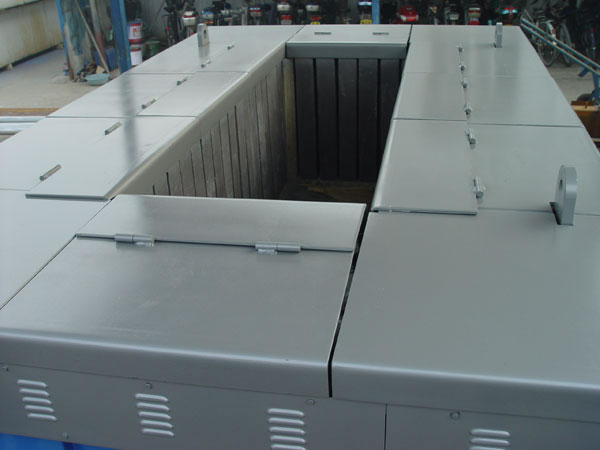

Immersion Heated Ceramic Galvanizing Kettle

  • Electric immersion heated ceramic
    galvanizing kettle
  • Electric immersion heated ceramic
    galvanizing kettle
  • Gas fired immersion heated ceramic
    galvanizing kettle
  • Gas fired immersion heated ceramic
    galvanizing kettle

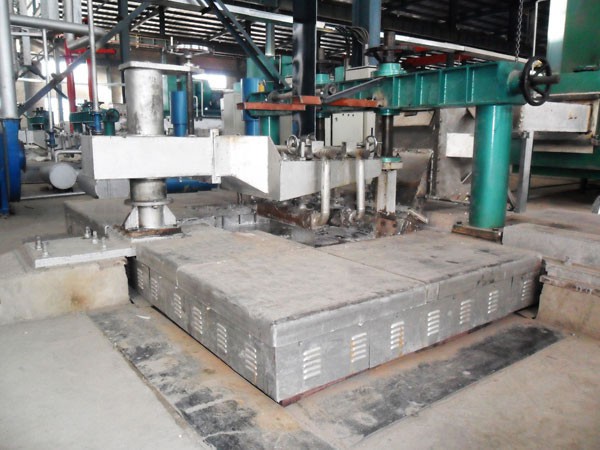

  • Plate and strip hot-dip ceramic
    galvanizing kettle
  • Plate and strip hot-dip ceramic
    galvanizing kettle

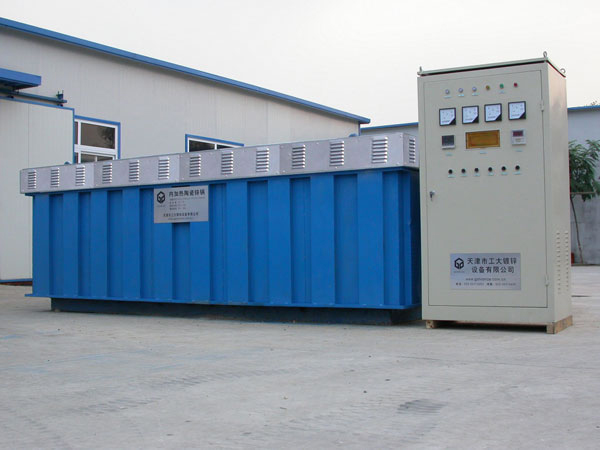

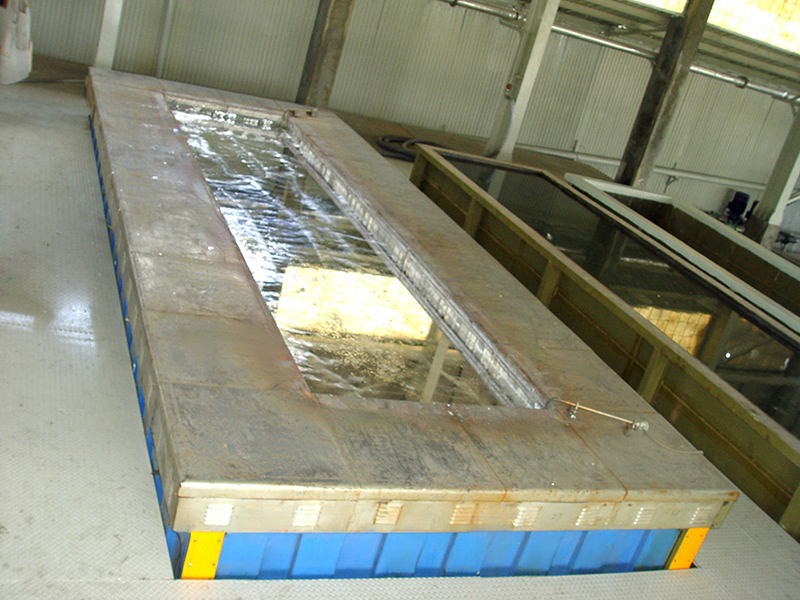

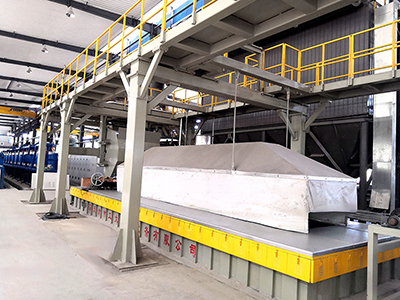

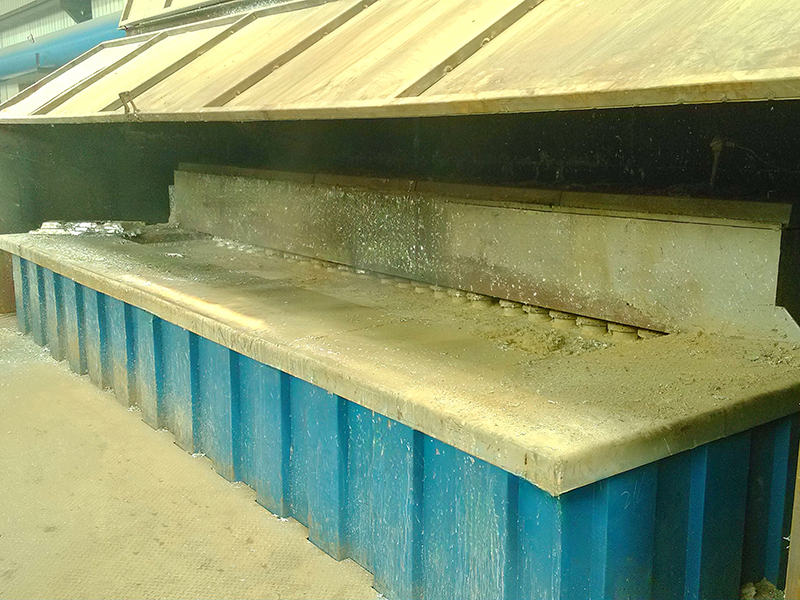

The immersion heated ceramic galvanizing kettle is an important hot-dip galvanizing machine in a galvanizing line. It has been widely used for the galvanizing equipment for steel wire, fastener, structural parts, malleable iron pipe, electric power fittings, steel nail, steel plate and strip, and so on. The molten zinc could reach 550℃.

Structure of the immersion heated ceramic galvanizing kettle
1. As a hot-dip galvanizing kettle, it consists of kettle, immersion heating device, electronic control system, and temperature control system. Specifically, the kettle comprises with casting layer, thermal insulating layer, and heat conservation layer, as well as the steel structural frame.

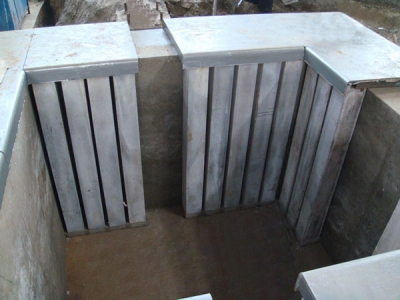

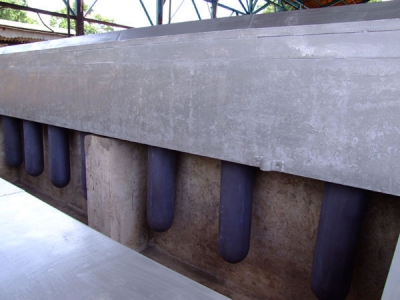

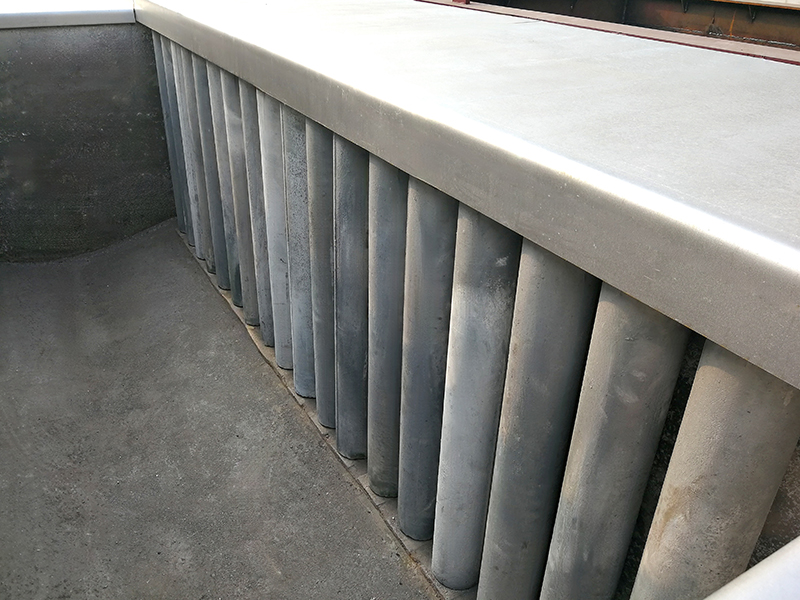

2. The kettle comes in a cubic structure. The top side is plane, while the heaters are mounted vertically and evenly on the inner side of the kettle. Thus the zinc temperature can stay identical, and the operation and maintenance are both quite easy. You can get higher productivity and safety.

3. The electronic control system and temperature control system of the immersion heated ceramic galvanizing kettle come with a temperature display for both the heater and zinc fluid. The heaters can resist the corrosion of the hot zinc. An anti-corrosive thermoelectric couple is used for the zinc temperature detection. Due to the direct contact with zinc, temperature detection is quite accurate. Thus the automatic temperature control and stable zinc temperature can be achieved.

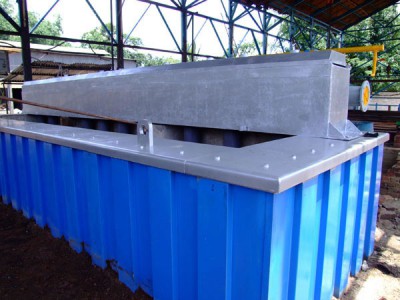

4. The steel frame for the kettle structure of the immersion heated ceramic galvanizing kettle is welded by quality steel. The welding seam and welding spot are under rigidly quality control so that the strength of this galvanizing equipment can be guaranteed. During the long-distance transportation, the machine won't get damaged in any way. The surface has been treated by efficient anti-rust techniques, giving the zinc electroplating kit great appearance and much longer service life.

Feature of the immersion heated ceramic galvanizing kettle
1. The heating devices are made of rare earth alloy or composite ceramic, so it features great corrosion (from zinc) resistance, high temperature resistance, good heat conductivity, high strength, desirable anti-impacting performance, excellent anti-wear ability, and so on.

2. The thermal stability is great, giving the kettle at least ten years of service life.

3. Our immersion heated ceramic galvanizing kettle has a high thermal efficiency of 80%~90%, saving about 30% energy in comparison to iron kettle with external heating devices.

4. The kettle body consists of three layers of thermal insulating materials, leading to excellent heat conservation performance. So the external temperature of the equipment is greatly improved. This technique has been granted with utility model patent.

5. The galvanizing kettle can melt zinc conveniently and quickly due to the adoption of internal heating devices. Limited cadmia and zinc ash will be produced.

6. The kettle doesn't produce any cadmia, so the zinc consumption is significantly (10-15%) reduced in comparison with that of a iron kettle.

Regular specification of the immersion heated ceramic galvanizing kettle (custom products are available)
Galvanizing kettle with ceramic immersion heater

No. Effective internal size (mm) Zinc capacity (ton) Heater quantity (set) Power of each Heater (kW) Total power (kW)
1 1100 600 700 3.3 18 3 54
2 2000 600 700 6 30 3 90
3 2500 650 700 8 30 3 90
4 2530 800 900 13 36 4 144
5 3500 800 900 18 48 4 192
6 4000 800 900 20 54 4 216
7 4000 940 1100 29 66 5 330
8 6000 940 1100 43 96 5 480
9 7000 940 1100 50 108 5 540
Galvanizing kettle with alloy immersion heater
No. Effective internal size (mm) Zinc capacity (ton) Heater quantity (set) Power of each Heater (kW) Total power (kW)
1 2200 600 800 11 12 10 120
2 2800 600 800 14 15 10 150
3 3300 600 800 16 18 10 180
4 3800 600 800 18 21 10 210
5 4300 600 800 20 24 10 240
